1963-66 Chevrolet/GMC Truck; Fuel Tank Relocate Kit; With Top Fill; 17-Gallon Capacity

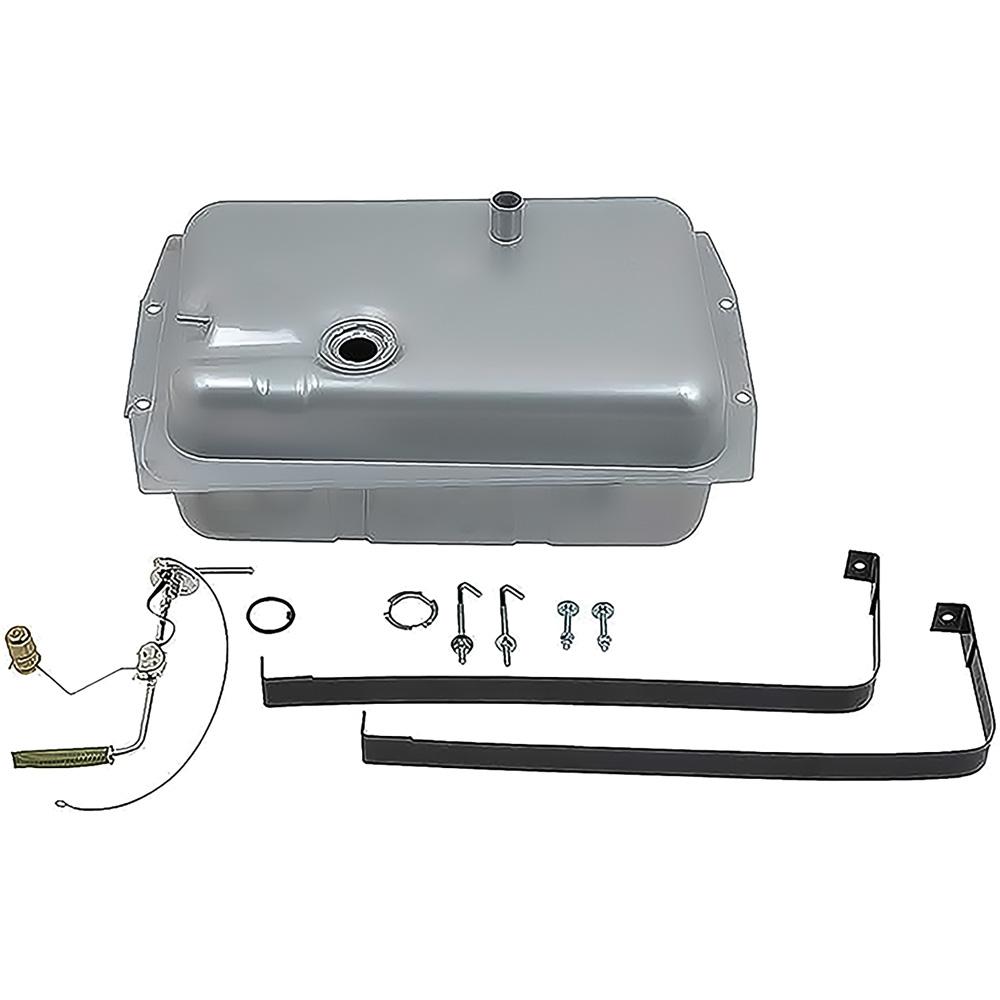

Relocate the fuel tank from inside the cab to underneath the truck on the frame rail. To eliminate gas fumes inside the cab and add more interior storage space. Sets include: a new 17 gallon top fill fuel tank, fuel tank straps and the correct 0-30 ohm fuel sending unit with gasket and lock ring.

This tank’s neck is located 3 inches from the left of the bed centerline and will place the filler neck in the center of the bedwood plank. Additional items will be needed to finish the installation, including: gas filler neck, fill hose and gas cap, fuel lines. Additionally, the sending unit wire will need to be extended and the spare tire mount brackets will need to be removed. This tank is designed for a custom fit and fabrication will be needed. Instructions are not available.

Use part# CX2140 for flush mount fuel filler kit.

Additional Information

Technical Specifications

• Tank dimensions: 26″ x 11″ x 15″

Chevrolet Applications:

• 1963-1966 C/K Truck

GMC applications:

• 1963-1966 1000/2000/3000 Series Truck
