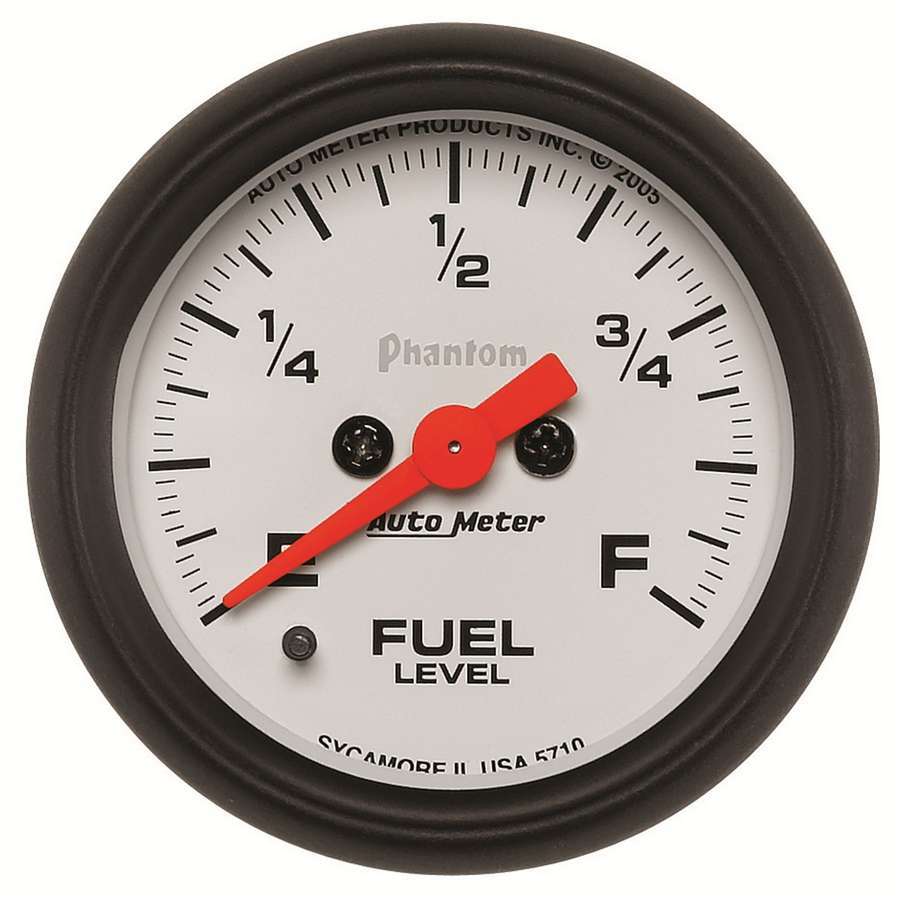

Auto Meter Phanton Series 2-1/16″ Full-Sweep 0-280 OHM Electric Programmable Fuel Level Gauge

Auto Meter Phantom gauges are race quality mechanisms featuring a subtle black bezel with stark white dials, bright orange pointers and perimeter incandescent lighting that make this extensive high performance line easy to read with a crisp, no-nonsense modern appearance.

Included with Gauge:

• 20 foot harness
• Mounting hardware
• Installation instructions

Made in USA

Traditionally, paring the proper fuel level level gauge to the application could be a more difficult task than it needed to be. This Auto Meter Digital Stepper Motor Fuel Level Gauge drastically simplifies the process with it’s easily configurable resistance range.

With 7 common configurations stored in memory from the factory, the vast majority of all applications are covered.

0 Ω Empty Р30 Ω Full
0 Ω Empty Р90 Ω Full
16 Ω Empty Р158 Ω Full
73 Ω Empty Р10 Ω Full
131 Ω Empty Р12 Ω Full
107.5 Ω Empty Р7 Ω Full
240 Ω Empty Р33 Ω Full

In the instance your fuel level sender is not included in these preconfigured ranges, an innovative custom calibration mode allows any sending unit that operates between 0 and 280 ohms, empty or full, to be easily paired. The “snapshot” programming method will allow you to capture the empty and full readings and the gauge does the rest.

No matter your application, there simply isn’t an easier solution for fuel level monitoring available on the market.

Don’t like incandescent lighting, or want to customize the illumination of your display?
Replacement LED bulbs are available separately in:

• AM3284 Red
• AM3285 Green
• AM3286 Blue
• AM3287 Amber
